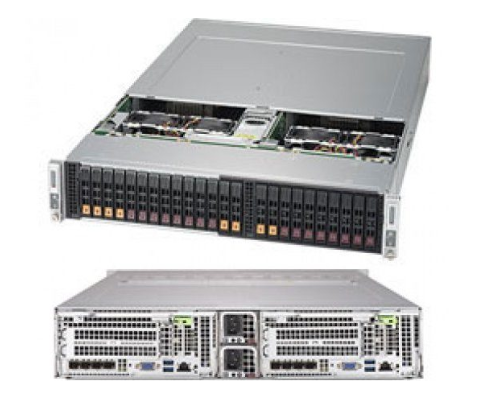

Máy chủ SuperServer SYS-2029BT-DNC0R
Key Features SuperServer SYS-2029BT-DNC0R
– Compute Intensive Application
– HPC, Data Center, Enterprise
Server
– Hyperscale / Hyperconverged
Processor: 1 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
Memory: 16GB DDR4.
Network Controller: Must bundle with at least one SIOM network card
Storages: 4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5″ drive bays; 2 internal M.2 NVMe/SATA slots
Power: 2200W Redundant Power Supplies
Form Factor: Rackmount 2U
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket P (LGA 3647) supports
Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS RDIMM/LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16, 1 SIOM card support (flexible networking)
Note: must bundle with Network card
4. 4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5″ drive bays; 2 internal M.2 NVMe/SATA slots
5. SAS3 support via Broadcom 3216; IT mode
6. IPMI 2.0 + KVM with dedicated LAN
7. Video via Aspeed AST2500 BMC
8. 4 Heavy duty 8cm PWM fans with air shroud
9. 2200W Redundant Power Supplies Titanium Level (96%)
