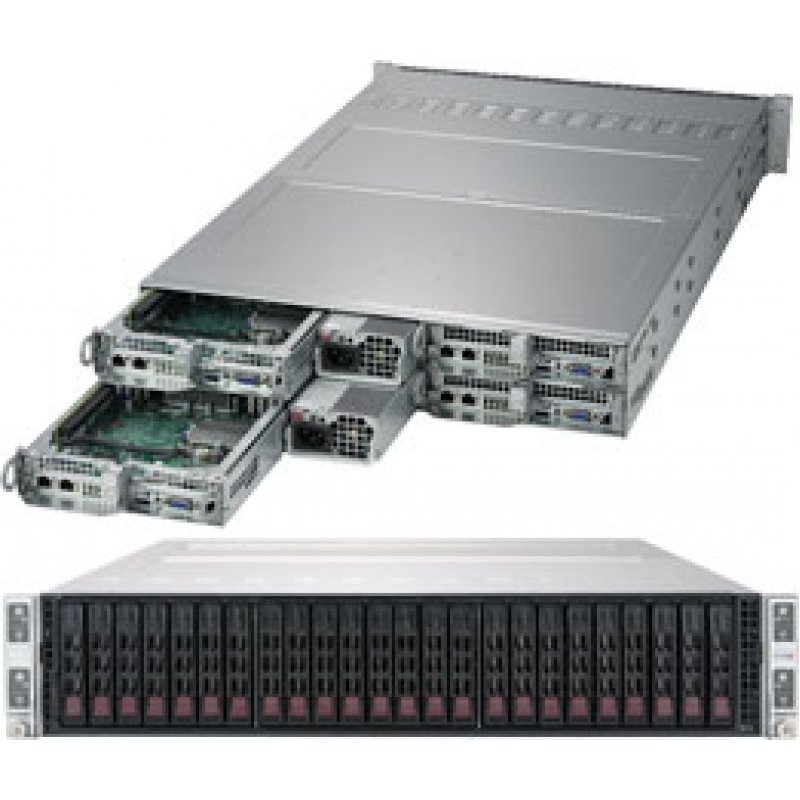

Máy chủ SuperServer SYS-2029TP-HTR
Key Features SuperServer SYS-2029TP-HTR
– Compute Intensive Application
– HPC, Data Center
– Enterprise Server
– Financial Analysis
– Mission-critical applications
Processor: 1 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
Memory: 16GB DDR4.
Network Controller: Flexible Networking support via SIOM
Raid: SATA3 (6Gbps); RAID 0, 1, 5, 10
Storages: 6 Hot-swap 2.5″ SATA3 drive bays
Power: 2200W Redundant Power Supplies
Form Factor: Rackmount 2U
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket P (LGA 3647) supports
Intel® Xeon® Scalable Processors,Dual UPI up to 10.4GT/s
2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots
4. Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
5. 6 Hot-swap 2.5″ SATA3 drive bays
6. Up to 2200W Redundant Power Supplies Titanium Level (96%)
Product SKUs
SYS-2029TP-HTR SuperServer 2029TP-HTR (Black)
Motherboard
Super X11DPT-PS
Processor/Cache (per Node)
CPU
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W*
Cores Up to 28 Cores with Intel® HT Technology
Note * Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
